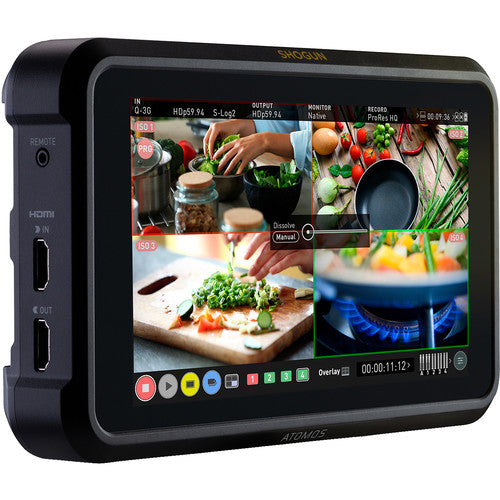

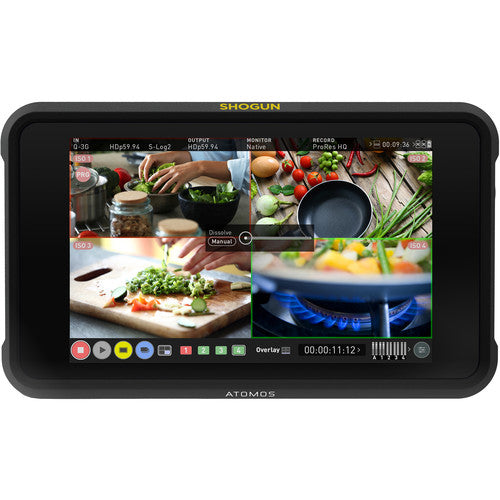

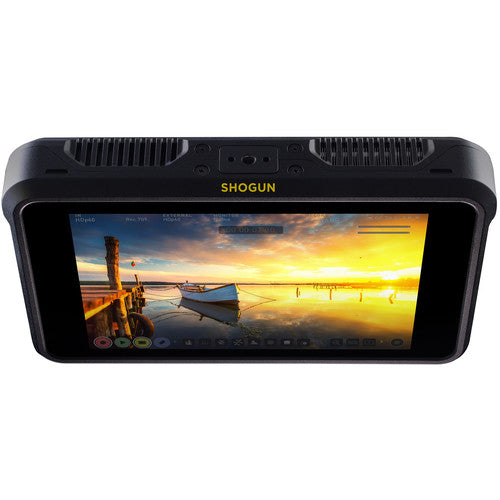

Atomos 7" HDR Pro/Cinema Monitor Recorder-Switcher

by Atomos
$1,299.99
SKU ATOMSHG701

The Atomos Shogun 7" HDR Pro/CInema Monitor-Recorder-Switcher is designed for professionals that push boundaries with the quality of their videos, this 7-inch screen elevates the image captured by any HDMI or SDI camera to new levels. With 1,000,000:1 contrast ratio and peak brightness of 3000nits, Shogun 7 is the ultimate all-in-one video production tool.

Shogun 7 embraces the high production values of RAW and 4K HDR to give you complete control of every aspect of your production, on-set and in post. Meticulously monitor every pixel of SDR or HDR as it’s captured. Record up to 5.7K Apple ProRes RAW* or 4K Apple ProRes. You can even shoot RAW at high frame rates up to HDp240**.

*Panasonic EVA1 **Sony FS Series and EVA1

Shogun 7 takes RAW data directly from the camera’s sensor and preserves the unprocessed image. This gives you more freedom to adjust and finesse every aspect of your video in post-production finishing. Applying ProRes compression technology to RAW image data adds another edge to your creative workflow. ProRes RAW files are smaller than most proprietary RAW formats so you can import, edit and grade faster and more efficiently. ProRes RAW is supported in Final Cut Pro X, Adobe Premiere and Avid Media Composer.

Fine tune every detail, while you shoot
A high-quality viewing experience gives you complete confidence to make educated on-set decisions.

With Shogun 7’s dynamic zoned backlight, blacks are deeper, whites are brighter, and the details of highlights are crystal clear. Shogun 7 gives you the control to maximise HDR exposure, while feeling comfortable with SDR finishing in post.

Simple monitoring tools put every detail of the image within your control. From custom 3D LUTs, false color profiles, adjustable focus peaking and movable 1:1 and 2:1 pixel magnification. In addition, RGB parade and vectorscopes ensure perfect colors on your calibrated monitor.

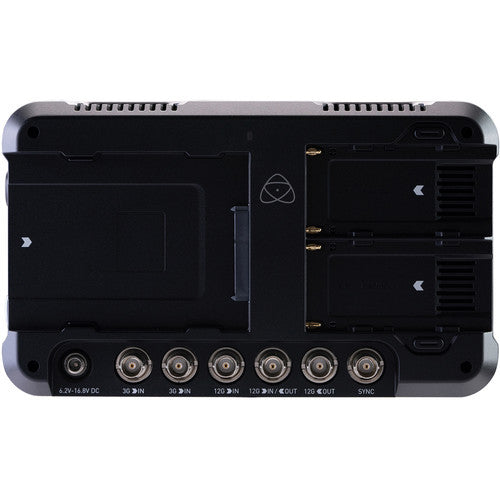

Take full advantage of 4 x SDI inputs and let Shogun 7 step into the role of a portable, quadview live switcher and recorder on your multi-camera shoots. Record up to four 1080p60 streams simultaneously as separate ISOs while cueing and switching in real-time with a simple touch of the screen. Shogun 7 allows user to record a fifth ‘program’ channel of your switched feed. Display the resulting mixed output (via HDMI or SDI) live on set. You can even output the switched feed for live streaming. Switching is completely asynchronous, eliminating the need for expensive locked sources and allowing the use of more affordable cameras.

Features:

  • 7" 4k60p HDR Monitor-Recorder-Switcher. HDMI + SDI i/o
  • 4 x ISO + Program channel recording (up to 1080p)
  • 3000nit Peak Brightness
